SDL500L

500L Tracked Concrete Mixer with R420 15HP Gasoline Engine

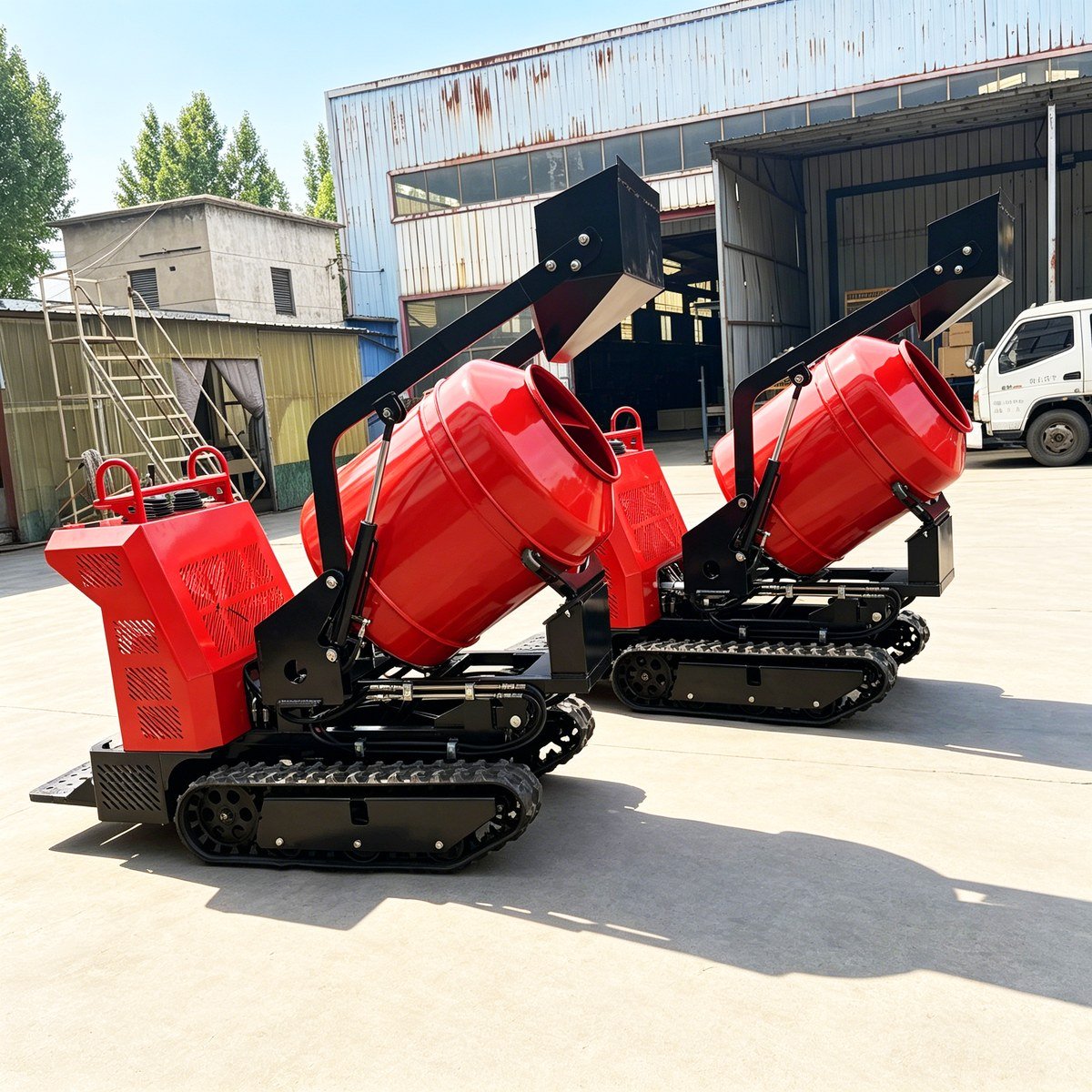

TorqMax SDL500L 500L Tracked Concrete Mixer with R420 15HP Gasoline Engine, Concrete Mixers

SDL500L, Key Specifications

ModelSDL500L
Dimensions2000 x 900 x 2000 mm (bucket with foot pedal)
Engine / Power15HP engine
MaterialsSteel frame with rubber crawler tracks

Product Details

Tracked concrete mixer truck with 500L mixing capacity for medium construction, road work and farming. Runtong R420 gasoline single-cylinder four-stroke engine (420cc, 15HP/3600rpm, No.92 gasoline); hydraulic bucket dumping with 100-degree dumping angle; tracked chassis with 180 mm tracks. Bucket size with foot pedal 2000 x 900 x 2000 mm; mixing mouth diameter 750 mm; mixing barrel length 1050 mm; hopper spout width 760 mm; chassis width 700 mm; track grounding length 1200 mm; ground clearance 110 mm; hydraulic system uses 46# anti-wear hydraulic oil with 20L tank. The SDL500L is a 500L tracked concrete mixer with an R420 15HP gasoline engine. The workhorse of the mixer range for medium to large site pours. The self-propelled tracked chassis moves the full batch to the pour point, cutting labor and wheelbarrow trips dramatically.

Site-proven performance

  • 500L batch capacity, real production output
  • R420 15HP engine, reliable mixing under load
  • Tracked drive, operates on rough, muddy sites
  • Fast discharge, keeps the pour moving

Watch it in action

See the SDL500L working before you order. SDL500L 500L Tracked Concrete Mixer: Job-Site Mixing in 2 Minutes of Real Video. Real footage, real job conditions.
Ready to buy? Request factory-direct pricing or WhatsApp +86 131 3833 7334. MOQ 1 unit, 12-hour quote.

Where the SDL500L fits your pour

The SDL500L mixes and moves concrete on site without a separate delivery truck. The practical answer for crews pouring more than a few cubic meters a month on sites where a ready-mix truck cannot reach the form. The 500L drum with its 15HP engine batches consistently, and the rubber-tracked chassis carries the mixed concrete across wet ground and finished floors to the exact placement point.
The tracked undercarriage carries mixed concrete across wet ground and finished floors to the exact placement point. With a 500L drum, it covers ground that otherwise takes a crew, a pickup or a wheelbarrow fleet to serve.
Typical buyers: concrete contractors on residential and small commercial pours, hardscape and foundation crews, and builders who currently turn away small jobs because ready-mix minimums do not make sense.

Why buyers choose this model

  • 500L drum capacity sized for real batch counts, not the biggest pour imaginable.
  • 15HP engine that holds drum speed with a full wet load.
  • Tracked mobility across mud, gravel and finished floors without sinking.
  • On-site mixing removes ready-mix minimums and lets you take small pours profitably.
  • Factory-direct supply. Spare parts and wear items ship from the same plant.

Frequently asked questions

What is the minimum order quantity?

One unit. You can order a single machine to evaluate build quality and performance before committing to volume, and we quote wholesale pricing at higher quantities.

What is the lead time?

Lead time is confirmed per order because it depends on the configuration and the current production schedule. Standard models typically move through production faster than custom builds. We give you a firm date when you place the order and tell you immediately if anything threatens it.

Can this machine be customized?

Yes. OEM and ODM work covers colour, branding and decals, deck or bed dimensions where the frame allows, engine brand in some configurations, and packaging for your market. Send your target specification and we will confirm what is achievable and the production time it adds.

Do you supply spare parts?

Yes. We keep a parts list with part numbers for every model we sell and dispatch spare parts worldwide after the warranty period as well. Common wear items are held in stock; larger assemblies are made to order, so ask for the lead time on the specific part before you need it.

Which certifications do these machines carry?

Machines for the United States ship with an EPA certificate of conformity and the required emission labelling. Machines for the European Union ship with the EU Declaration of Conformity, CE plate, engine Stage V approval and noise test data. Both ship with full export documentation including the certificate of origin.

Frequently Asked Questions

What is the minimum order quantity?

One unit. You can order a single machine to evaluate build quality and performance before committing to volume, and we quote wholesale pricing at higher quantities.

Request a Quote for SDL500L

Tell us your target quantity and destination port, we reply with pricing and lead time.

⭐ ★★★★★ What a wholesale buyer said

“The 500L Tracked Concrete Mixer with R420 15HP Gasoline Engine mixes consistently, 15HP engine, 2000 x 900 x 2000 mm (bucket with foot pedal). It moves the batch right to the pour point on tracks, and our crew cut labor time roughly in half on foundations and paths.”

- Building contractor, Peru
