SDL1000L

1000kg Tracked Lift Dump Truck with R500 19.5HP Engine

1000kg tracked lift dump truck, Runtong R500 19.5HP gasoline engine and hydraulic lifting bucket for heavy farm and construction hauling

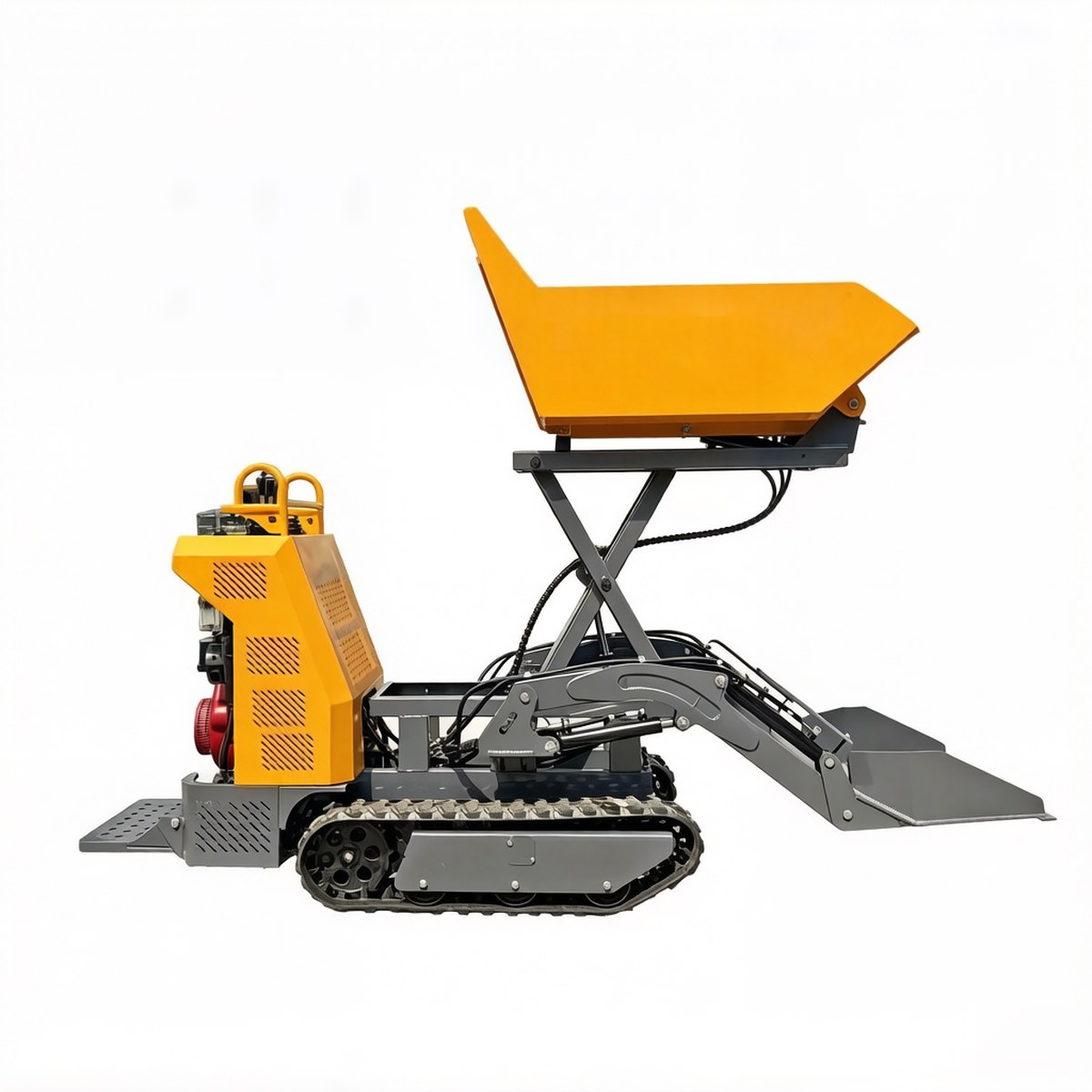

SDL1000L 1000kg tracked lift dump truck with r500 19.5hp engine

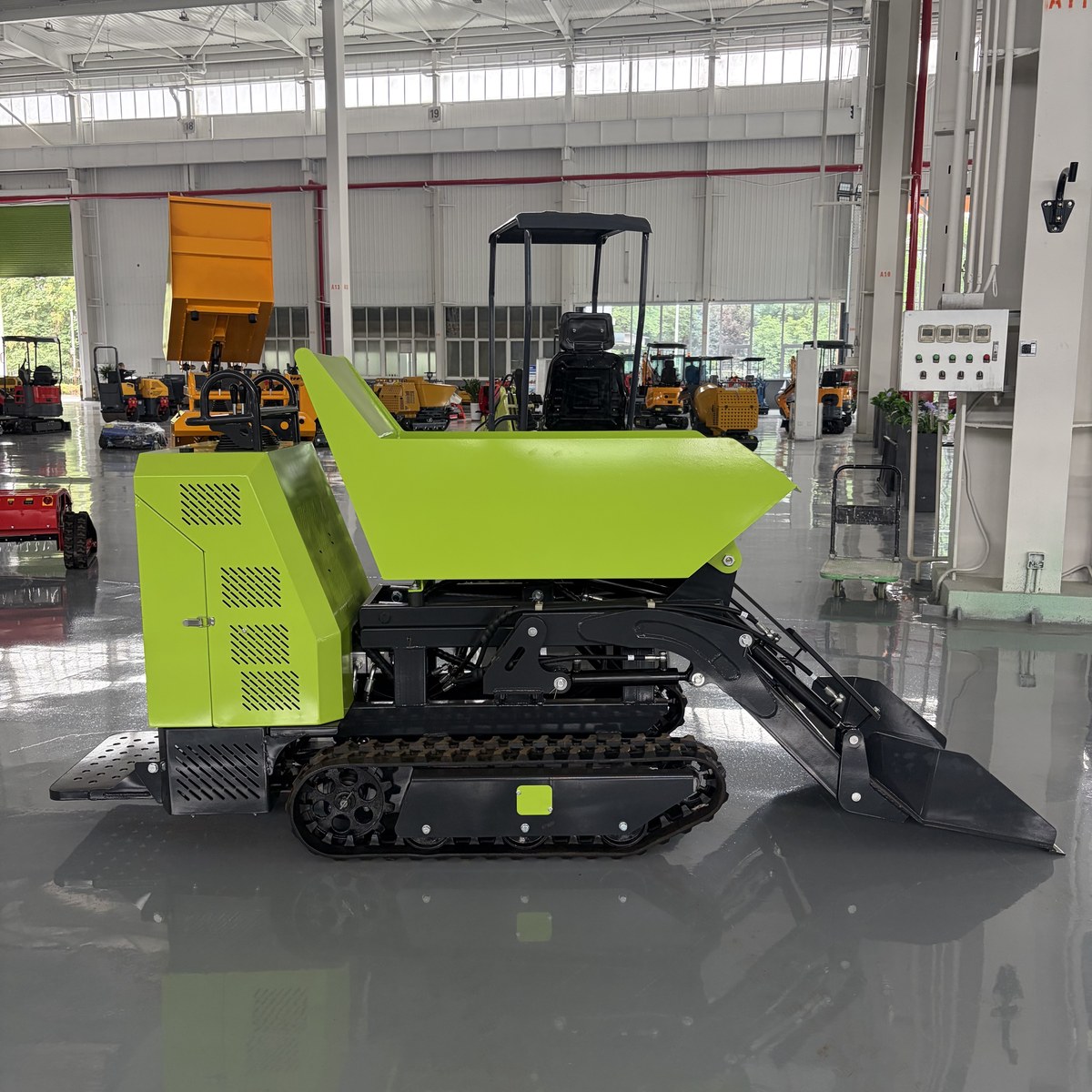

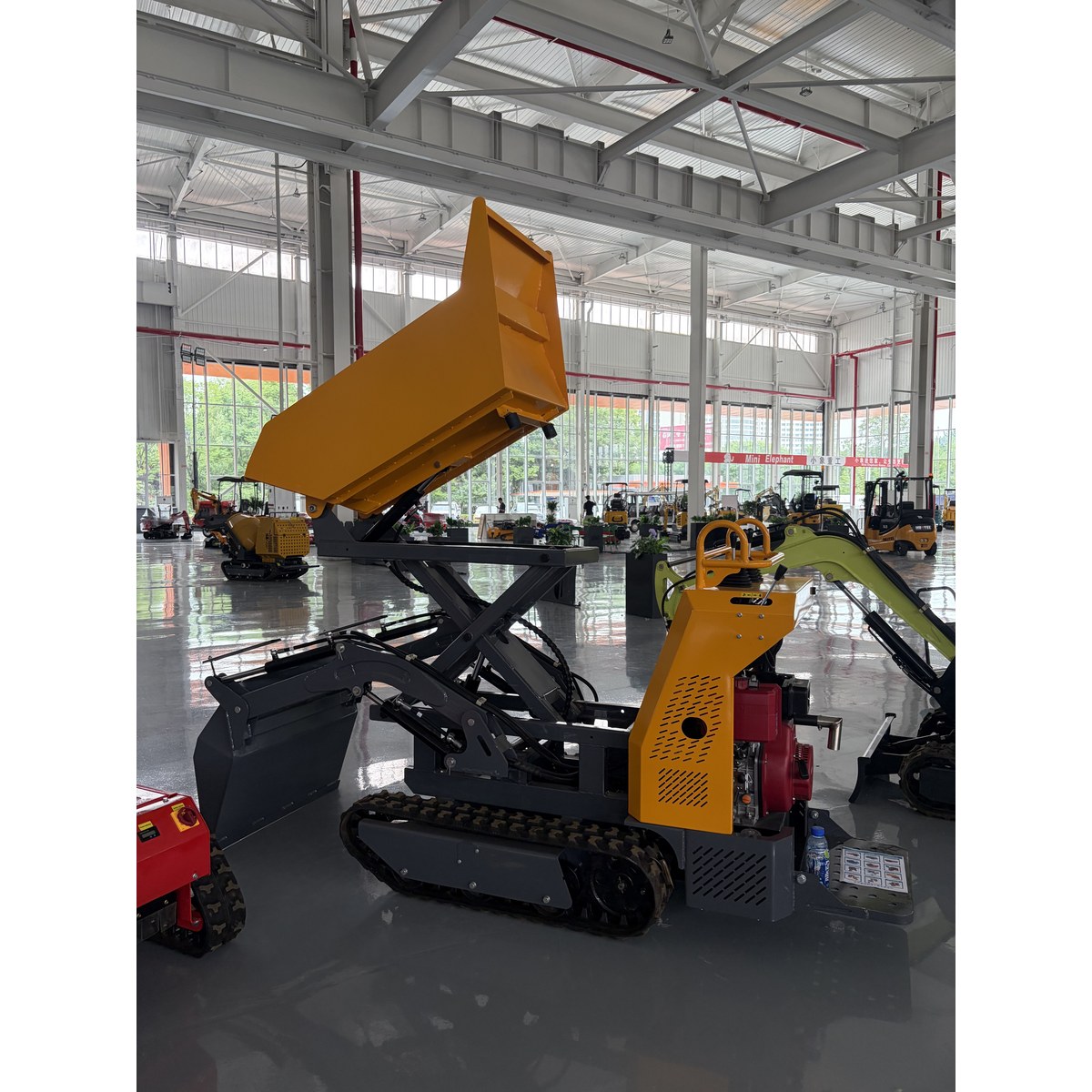

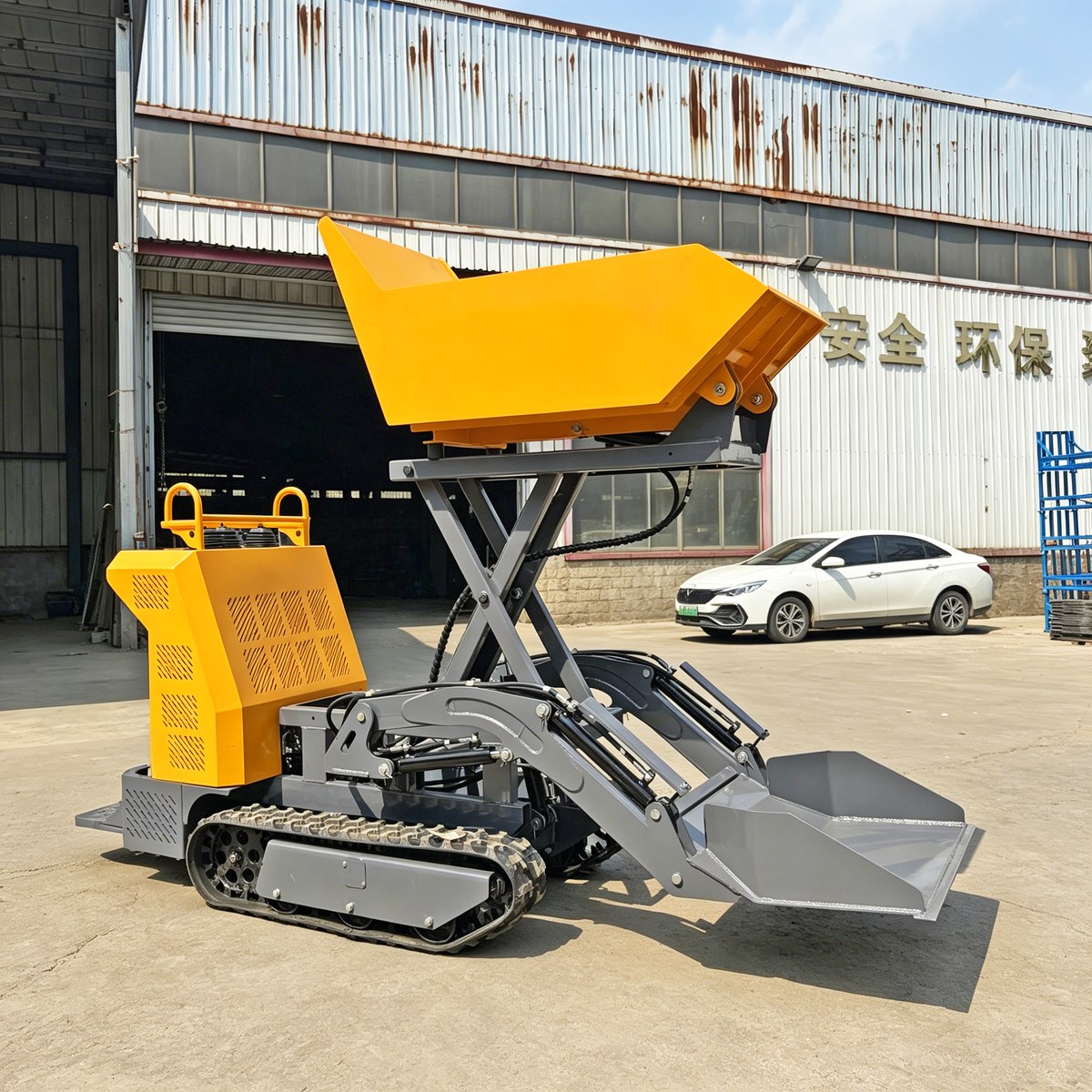

SDL1000L product view SDL1000L product view SDL1000L product view

SDL1000L — Key Specifications

ModelSDL1000L
Dimensions2000 x 900 x 2000 mm (bucket with foot pedal)
Engine / Power19.5HP engine
MaterialsSteel frame with rubber crawler tracks
Request a Quote WhatsApp Us

Product Details

Tracked lift dump truck with 1000 kg maximum load for heavy farm and construction hauling. Runtong R500 gasoline single-cylinder four-stroke engine (500cc, 19.5HP/3600rpm, No.92 gasoline); hydraulic lifting and tipping bucket; tracked chassis with steel frame. Bucket size with foot pedal 2000 x 900 x 2000 mm; container size 1450 x 950 x 400 mm; bucket dimensions 700 x 800 x 220 mm; chassis width 700 mm; track width 180 mm; track grounding length 1200 mm; ground clearance 110 mm; dumping angle 100 degrees; hydraulic system uses 46# anti-wear hydraulic oil with 20L tank.

Frequently Asked Questions

What is the MOQ?

MOQ depends on the model and configuration. Contact us with your requirements and we will confirm.

What is the lead time?

Standard lead time is confirmed per order. Custom configurations may require additional production time.

Can you customize this machine?

Yes — TorqMax supports OEM/ODM customization including specs, colors, branding and packaging. Tell us your requirements.

Is factory-direct wholesale available?

Yes, we supply wholesale and project quantities directly from the factory. Email info@inqulm.com or message us on WhatsApp at +86 177 5875 6157.
