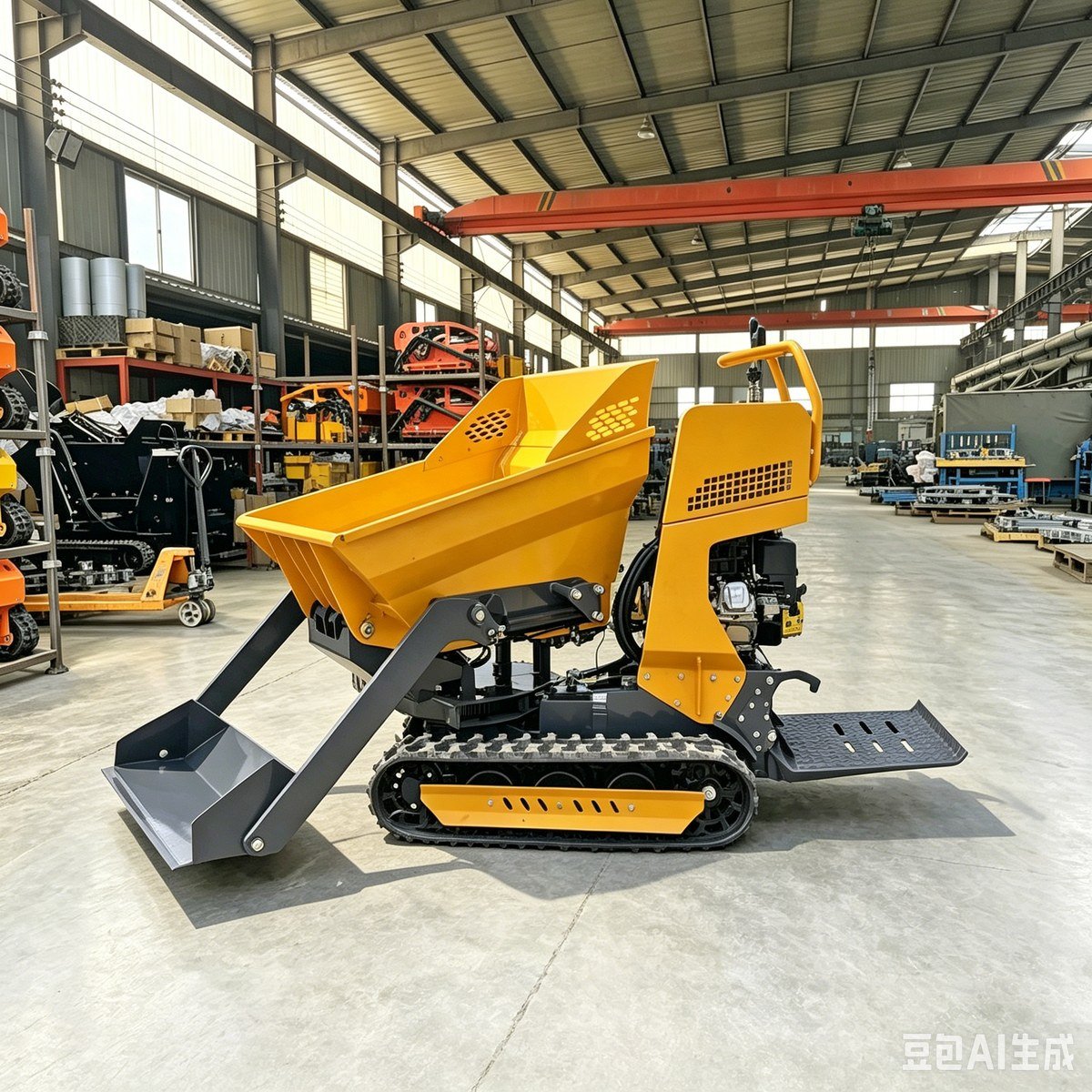

500kg Tracked Rotary Dump Truck with 180-Degree Rotation

Tracked rotary dump truck with 500 kg maximum load and 180-degree bucket rotation for precise dumping in farm, garden and small construction sites. 208cc four-stroke air-cooled gasoline engine (6.5HP/3600rpm, No.92 gasoline); hydraulic tipping (100 degrees) and rotation; tracked chassis with steel frame. Body dimensions 1570 x 880 x 1300 mm; cargo box 1050 x 730 x 730 mm with 200L capacity; chassis width 700 mm; track width 180 mm; travel speed 2.88 km/h; hydraulic system uses 46# anti-wear hydraulic oil.

About the SDL500R

The SDL500R is a 500kg tracked rotary dump truck with a 180-degree rotating bed. A machine designed for jobs where a standard front-dump unit cannot position itself. The bed swings to dump left or right, so the operator keeps the tracks on solid ground while the load goes exactly where it is needed.

Why the rotary dump matters

• 180-degree bed rotation, dump to either side without repositioning
• 500kg payload, matched to small and medium site logistics
• Tracked chassis. Moves through mud, soft soil and tight spaces
• 6.5HP gasoline engine, dependable power with simple maintenance

Ideal for trench backfill, path and foundation work, greenhouse floors and any site where a conventional dumper cannot line up to the pour or fill point. Compact dimensions (1570 x 880 x 1300 mm) let it work through standard doorways and narrow access routes.

Where the SDL500R earns its keep

The SDL500R moves material across ground where wheeled machines sink: wet excavation floors, soft topsoil, finished turf and narrow site corridors. With a rated payload and a rubber-tracked chassis, it carries spoil, concrete, aggregate and plant without ruts or bogging down. The jobs where a wheelbarrow crew burns a day and a wheeled dumper gets stuck in the first hour.
The 180-degree rotary skip dumps to either side without repositioning, the trench and narrow-corridor configuration. With a 500 kg payload, it covers ground that otherwise takes a crew, a pickup or a wheelbarrow fleet to serve.
Typical buyers: construction crews on restricted urban sites, landscapers moving topsoil and mulch, concrete contractors feeding pours, and rental fleets that need one reliable tracked hauler.

Why buyers choose this model

• rated payload matched to real site loads, not brochure maximums.
• Rubber-tracked chassis for mud, sand and soft ground, and no damage to finished surfaces.
• Hydraulic dumping places material exactly where needed, removing shovel work.
• Compact footprint that fits gateways, aisles and trenches a full-size dumper cannot enter.
• Factory-direct supply with export packing, spares and OEM/ODM options.

Frequently asked questions

What is the difference between this and a similar model?

Models in the same range differ mainly in working width, engine displacement and payload rather than in build quality. Tell us your ground conditions, access width and daily workload and we will recommend the configuration that fits, or compare specifications side by side for you.

Can this machine work on slopes?

Slope capability depends on the model and the ground surface. Tell us the gradient and whether it is grass, gravel or wet clay, and we will confirm the safe working angle for the specific machine. Gradeability figures are part of the specification sheet we agree with you before production.

What support do you provide after delivery?

We support operators by video call for fault diagnosis and provide the parts manual with part numbers so you can order precisely. Common wear parts are held in stock and dispatch within days. We also supply the maintenance schedule your end users need to avoid most premature failures.

How do you pack spare parts with the machine?

Spare parts travel in the same container as the machines, filling the voids that irregular machine shapes leave behind. Because the container is shipping anyway, the parts add effectively no freight cost. Tell us your wear-parts list and we will load it with your order.

Do you provide a loading plan?

Yes. Before the container is sealed we send a loading plan showing each unit in position, the units per container and the total weight, together with photographs of the packed container. That lets you reconcile the quantity loaded against your order before the vessel sails.
