TORQMAX
Home Products Mini Dump Trucks

SDL500

500kg Tracked Mini Dump Truck with Hydraulic Dumping

500kg tracked mini dump truck, R21 212cc gasoline engine and hydraulic tipping bucket for farm and construction hauling

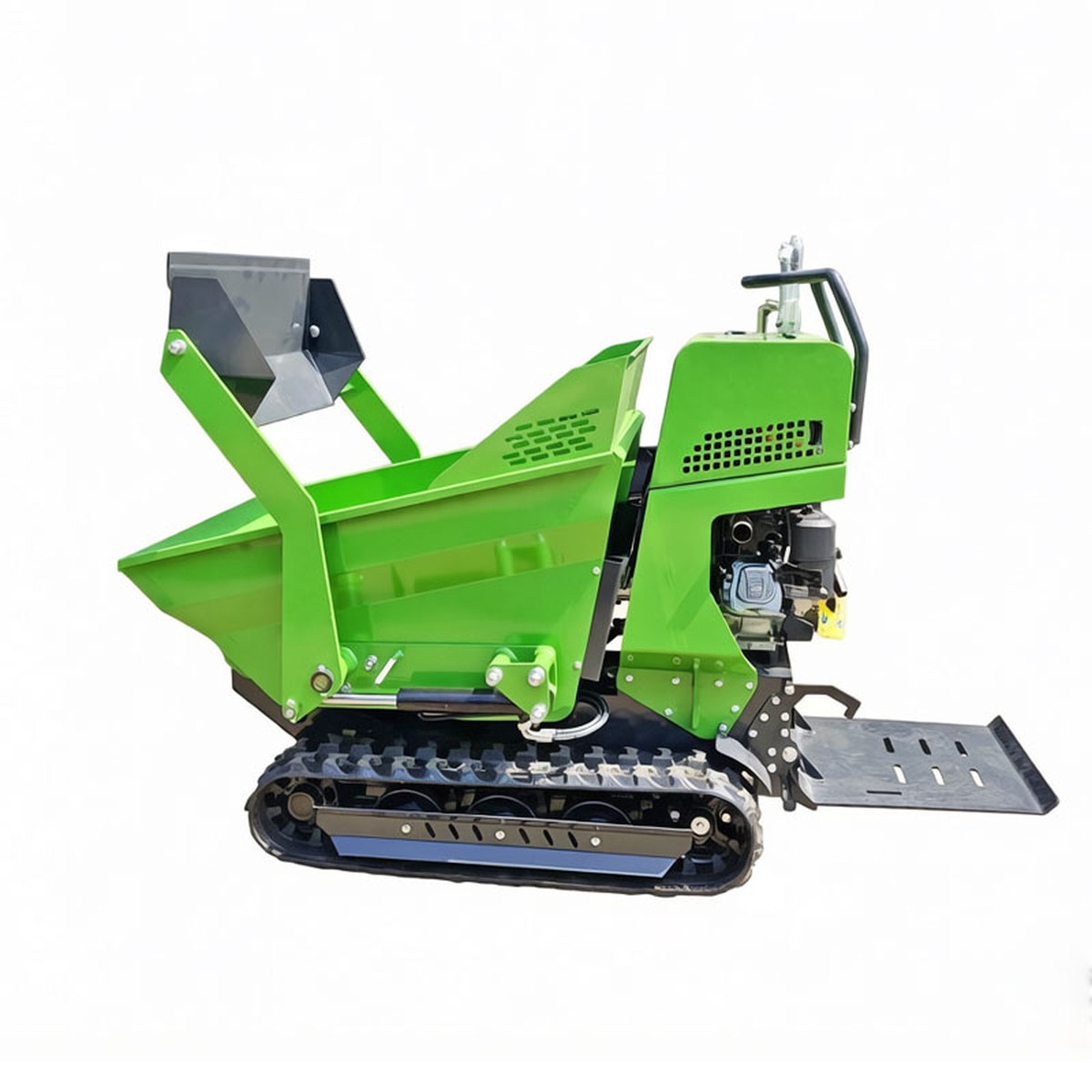

SDL500 500kg tracked mini dump truck with hydraulic dumping

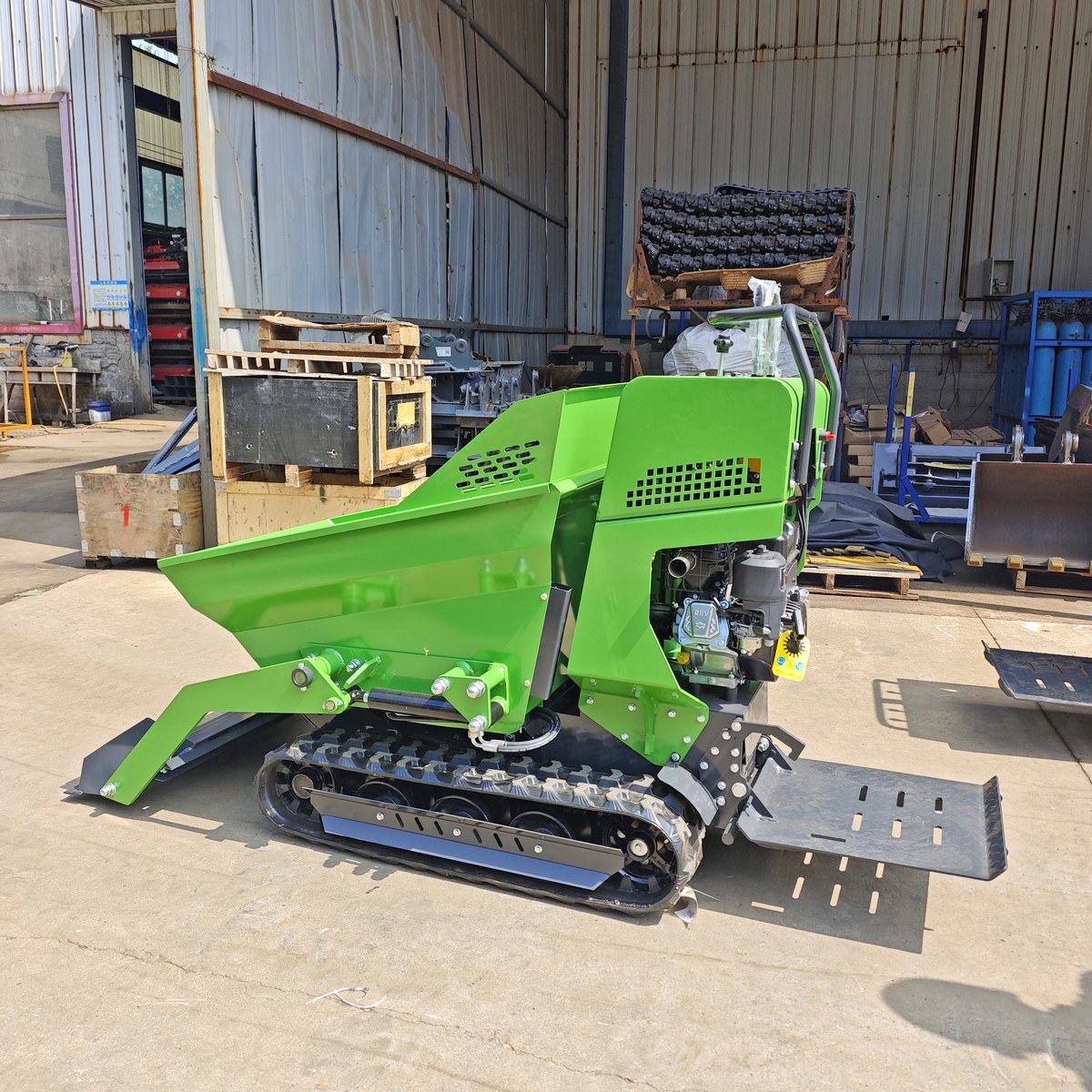

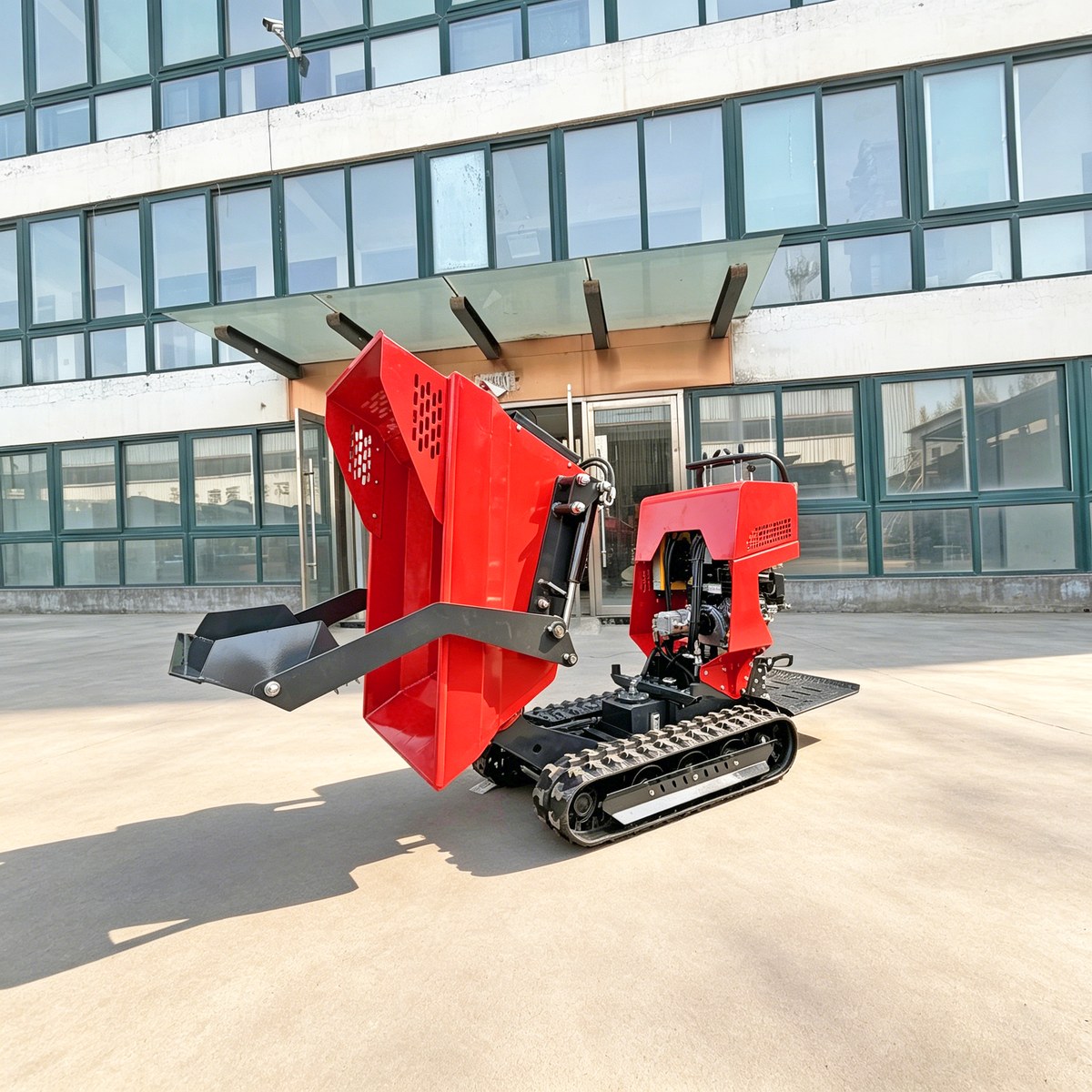

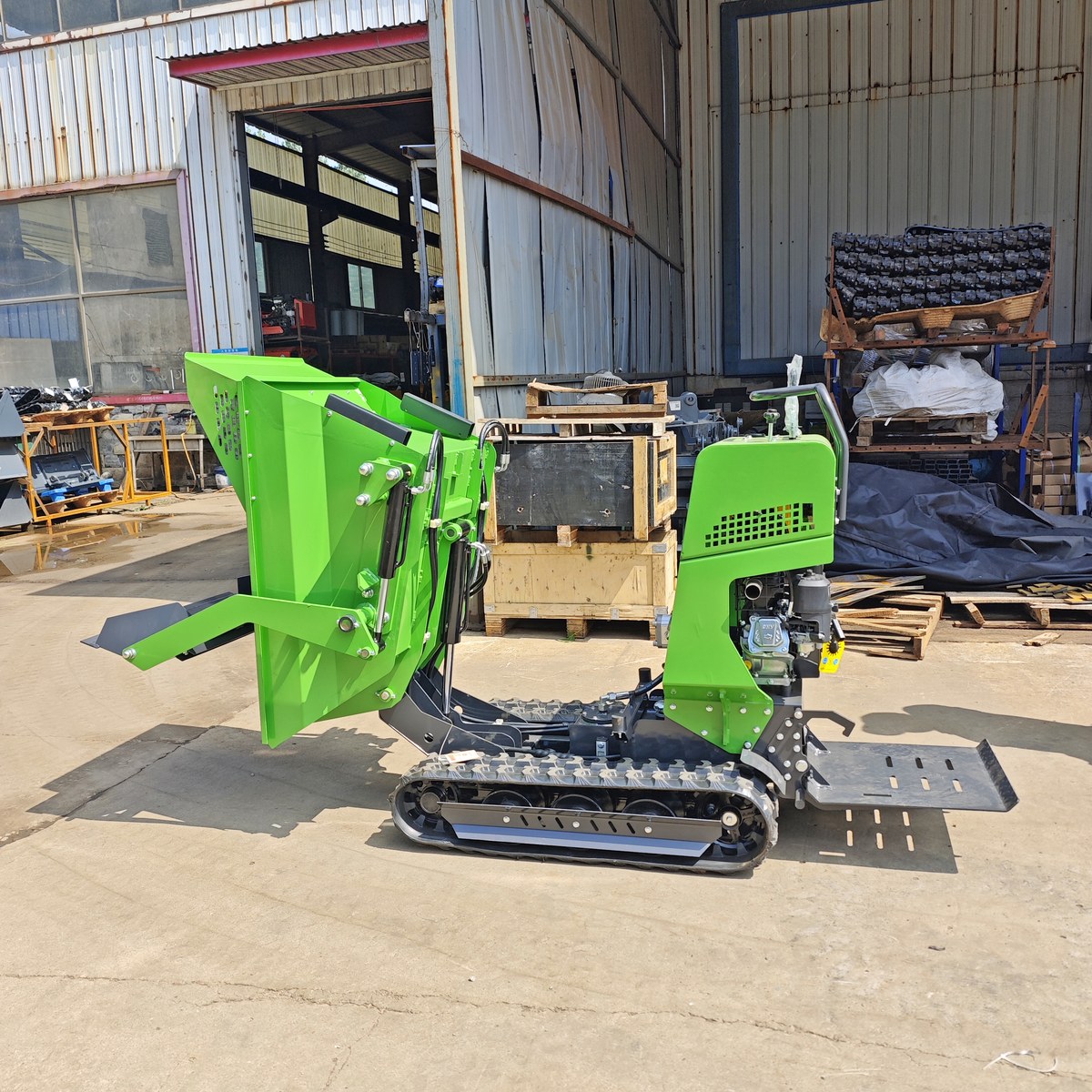

SDL500 product view SDL500 product view SDL500 product view

SDL500 — Key Specifications

ModelSDL500
Dimensions2050 x 330 x 1300 mm (with foot pedals and bucket)
Engine / Power4.3kW engine
MaterialsSteel frame with rubber crawler tracks
Request a Quote WhatsApp Us

Product Details

Tracked mini dump truck with 500 kg maximum load for farm, garden and small construction hauling. Runtong R21 four-stroke air-cooled gasoline engine (212cc, 4.3kW/3600rpm, No.92 gasoline); hydraulic bucket tipping; tracked chassis with steel frame. Body dimensions 1970 x 330 x 1300 mm (without foot pedals and bucket) or 2050 x 330 x 1300 mm (with foot pedals and bucket); cargo box 1050 x 730 x 730 mm with 200L capacity; chassis width 700 mm; travel speed 2.33 km/h; hydraulic system uses 46# anti-wear hydraulic oil.

Frequently Asked Questions

What is the MOQ?

MOQ depends on the model and configuration. Contact us with your requirements and we will confirm.

What is the lead time?

Standard lead time is confirmed per order. Custom configurations may require additional production time.

Can you customize this machine?

Yes — TorqMax supports OEM/ODM customization including specs, colors, branding and packaging. Tell us your requirements.

Is factory-direct wholesale available?

Yes, we supply wholesale and project quantities directly from the factory. Email info@inqulm.com or message us on WhatsApp at +86 177 5875 6157.
